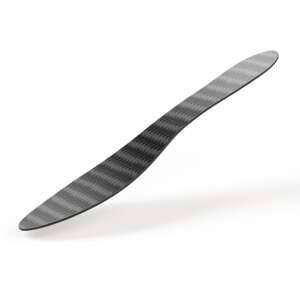

Carbon Footplate Rigid
The carbon fiber insole is designed to protect the MTP joints and forefoot by limiting the range of motion (ROM), distributing pressure, and facilitating a natural roll-off. It can be used after immobilization treatment with a postoperative shoe or walker to gradually increase mobility.
For patients with toe amputation, the insole contributes to better balance and a more efficient push-off at the end of the stance phase. It provides extra support and stability where the range of motion in the toe joints needs further restriction.
For optimal comfort and function, the carbon fiber insole should be covered with an insert.
Recommended Range Of Application
Hallux Rigidus, Hallux Limitus, stress fractures and other injuries or arthritis
conditions in the forefoot/midfoot, forefoot trauma, toe sprain and toe
amputation.
Contraindications
Open ulcers on the foot. Non stable fractures. Weight over 300 lbs/ 135 kg.
Model
| Item No. | Model | Thickness | Size | L/R | Length | Width |
|---|---|---|---|---|---|---|
| 280361011 | Carbon Footplate Rigid | 2,0 mm | Small | - | 235 mm | 77 mm |
| 280361012 | Carbon Footplate Rigid | 2,0 mm | Medium | - | 255 mm | 80 mm |
| 280361013 | Carbon Footplate Rigid | 2,0 mm | Large | - | 275 mm | 90 mm |
| 280361014 | Carbon Footplate Rigid | 2,0 mm | X-Large | - | 305 mm | 99 mm |
| 280362011 | Carbon Footplate Rigid | 2,0 mm | Small | - | 235 mm | 77 mm |
| 280362012 | Carbon Footplate Rigid | 2,0 mm | Medium | - | 255 mm | 80 mm |
| 280362013 | Carbon Footplate Rigid | 2,0 mm | Large | - | 275 mm | 90 mm |
| 280362014 | Carbon Footplate Rigid | 2,0 mm | X-Large | Höger | 305 mm | 99 mm |
-
Instructions for Use Carbon Footplate Rigid (14.24 MB)
-
Brochure Carbon Footplate Rigid (2.17 MB)
