Swash® Go

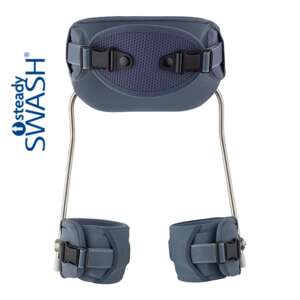

Swash is a unique dynamic hip brace that allows controlled variable abduction and dynamic movement in all three planes of motion. The goal of SWASH® is to prevent excessive hip adduction when sitting, standing, and walking as usual in cerebral palsy. However, perhaps the most important benefit the SWASH® offers is guidance for hip alignment. SWASH GO is the choice for the standing and ambulatory patient, when primary goal is to control scissoring gait and when patient has limited space between the iliac crest and the rib cage. It also encourages greater trunk extension for improved postural positioning. A complete SWASH orthosis requires 3 parts: a Pelvic Section, Thigh Cuffs, & Uprights. Please order each item separately. SWASH GO Pelvic section has an aluminum posterior frame that extends from approximately L2/L3 to S1/S2, with an iliac extension. Uprights are available in two versions: 115° = narrow sitting base / 123° = wide sitting base

Recommended Range Of Application

When primary goal is to control scissoring gait and when patient has limited space between the iliac crest and the rib cage.

Measurement

At the level of the ASIS. Ideal is to fit the orthosis at mid-pelvic girdle to obtain good pelvic stability. See "Fitting and Customization Manual" below for Sizing Guide.

Other

A complete SWASH orthosis requires a Pelvic Section, Thigh Cuffs, & Uprights. Please order each item separately.

Item No. Model Size Circumference Length Diameter
288530001 GO Pelvic Section 1 40-46,5 cm - -
288530002 GO Pelvic Section 2 46-55 cm - -
288530003 GO Pelvic Section 3 54-63 cm - -
288530004 GO Pelvic Section 4 62-72 cm - -
288530005 GO Pelvic Section 5 71-81 cm - -
288540801 GO Thigh Cuff 1 21-25 cm - -
288540802 GO Thigh Cuff 2 25-29 cm - -
288540803 GO Thigh Cuff 3 29-33 cm - -
288540804 GO Thigh Cuff 4 33-38 cm - -
288540805 GO Thigh Cuff 5 38-44 cm - -
288540806 GO Thigh Cuff 6 44-50 cm - -
288550801 GO Uprights 115° 1 - 31 cm 8 mm
288550802 GO Uprights 115° 2 - 37,5 cm 8 mm
288550803 GO Uprights 115° 3 - 44 cm 8 mm
288550804 GO Uprights 115° 4 - 48 cm 8 mm
288550805 GO Uprights 115° 5 - 54 cm 8 mm
288550806 GO Uprights 115° 6 - 60 cm 8 mm
288560801 GO Uprights 123° 1 - 31 cm 8 mm
288560802 GO Uprights 123° 2 - 37,5 cm 8 mm
288560803 GO Uprights 123° 3 - 44 cm 8 mm
288560804 GO Uprights 123° 4 - 48 cm 8 mm
288560805 GO Uprights 123° 5 - 54 cm 8 mm
288560806 GO Uprights 123° 6 - 60 cm 8 mm
