ToeOFF^® Combo

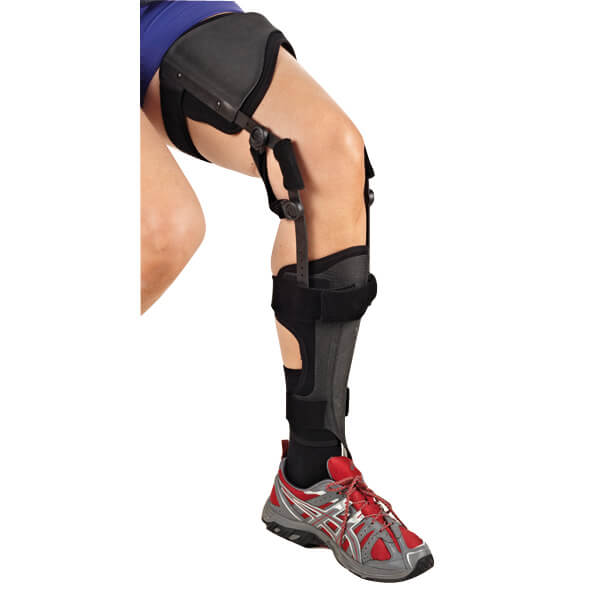

Dynamic low profile, lightweight, functional orthotic solution for the management of genu recurvatum or chronic knee instability, accompanied by footdrop. Low profle and lightweight – a KAFO your patients will wear! Uprights easily shaped and adjusted to optimum height for patient. Modular components allow you to accommodate variances in thigh and calf circumference. Easy to don and doff. Easily removed when wearer is relaxing (watching TV, etc.)

Recommended Range Of Application

Knee instability, knee hyperextension in combination with a foot drop from stroke, post-polio, MS, etc.

Contraindications

Weight Limit - 150 kg, Height Limit - 2 m, Use of COMBO with any product other than ToeOFF^® or BlueROCKER^® is prohibited.

Measurement

Kneemeasure 1: M-L mid-patella
Kneemeasure 2: Circumference 20 cm above the mid-patella
Kneemeasure 3: M-L 20 cm above the mid-patella

Other

To order a complete COMBO you need five articles in addition to ToeOFF/BlueROCKER.
1. Joints with uprights (pair)
2. Tibia connector
3. Strap set and buckles
4. Thigh cuff
5. Thigh cuff SoftKIT (2 pc.)

Recommended literature

Model

Item No.	Model	Size	L/R	Knee Measurement 1	Knee Measurement 2	Knee Measurement 3
287800000	Joints with uprights	One size	Bilateral	-	-	-
287811011	Thigh cuff	Small	Left	-	30-40 cm	11-15 cm
287811012	Thigh cuff	Medium	Left	-	38-50 cm	13-17 cm
287811013	Thigh cuff	Large	Left	-	48-60 cm	15-19 cm
287811014	Thigh cuff	X-Large	Left	-	58-70 cm	17-21 cm
287812011	Thigh cuff	Small	Right	-	30-40 cm	11-15 cm
287812012	Thigh cuff	Medium	Right	-	38-50 cm	13-17 cm
287812013	Thigh cuff	Large	Right	-	48-60 cm	15-19 cm
287812014	Thigh cuff	X-Large	Right	-	58-70 cm	17-21 cm
287820011	Strap set and buckles, poplitea interface	Small	Bilateral	7-10,5 cm	-	-
287820012	Strap set and buckles, poplitea interface	Medium	Bilateral	9,5-13 cm	-	-
287820013	Strap set and buckles, poplitea interface	Large	Bilateral	12,5-16 cm	-	-
287960000	Calf Strap	One Size	-	-	-	-
287830011	Thigh cuff softKIT (2 pc.)	Small	Bilateral	-	-	-
287830012	Thigh cuff softKIT (2 pc.)	Medium	Bilateral	-	-	-
287830013	Thigh cuff softKIT (2 pc.)	Large	Bilateral	-	-	-
287830014	Thigh cuff softKIT ( 2pc.)	X-Large	Bilateral	-	-	-
287840011	Tibia connector	Small	Bilateral	-	-	-
287840012	Tibia connector	Medium	Bilateral	-	-	-
287840013	Tibia connector	L-XL	Bilateral	-	-	-
